Streamlining a Legacy Solution: A DevOps Approach

Imagine taking on a project where the challenge is not just revitalizing a few lines of code, but resuscitating a product born in the past with limited knowledge base. In this tech blog, we delve into the strategic and tactical moves involved in breathing new life into a Network as a Service (SD-WAN) product. The catch? Tight timelines, an absent knowledge base, and a laundry list of challenges.

Challenges at a Glance:

  • Knowledge Vacuum: Initial developers or architects are no longer part of the team, leaving behind a black box.
  • Uncharted Waters: The product is untested for stress and security, lacks basic DevOps processes, and faces a swift delivery deadline.

Understanding the Product:

Before diving into the DevOps strategy, let's understand the product—on a high level:

  • It is a Network as a Service solution (SD-WAN).
  • Comprises of a few components , namely a control plane , monitoring portal and Edges
  • Mobile and desktop apps connect to the edge to land into the network configured.
  • The initial version was deployed on virtual machines via a hypervisor module - running on a Baremetal as a service infrastructure (like the one provided by OVH)

Product Lean Strategy:

The plan is to make the product leaner by migrating to Docker containers, enhancing usability, and scalability. And later adopt K8s to orchestrate the components.

DevOps Strategy:

Core Requirements:

  • Establish a DevOps workflow for the current product version.
  • Ensure scalability to adopt the Product Lean Strategy (Docker containers).
  • Segregate environments for different testing flavors.
  • Embrace agility through CI/CD.

Tactical Solution:

Considering time constraints, identify the quickest deployment approach, preferably automated but documented workflows are acceptable.

Strategic Solution:

Move towards stringent controls, security best practices, adopt GitOps, and minimize human intervention.

Attaining Tactical Milestones (0-2 months):

Understanding the Product:

Reverse engineer and collaborate with the longest-tenured Product Manager (1.5 years) to grasp the moving parts.

Initial Design Analysis:

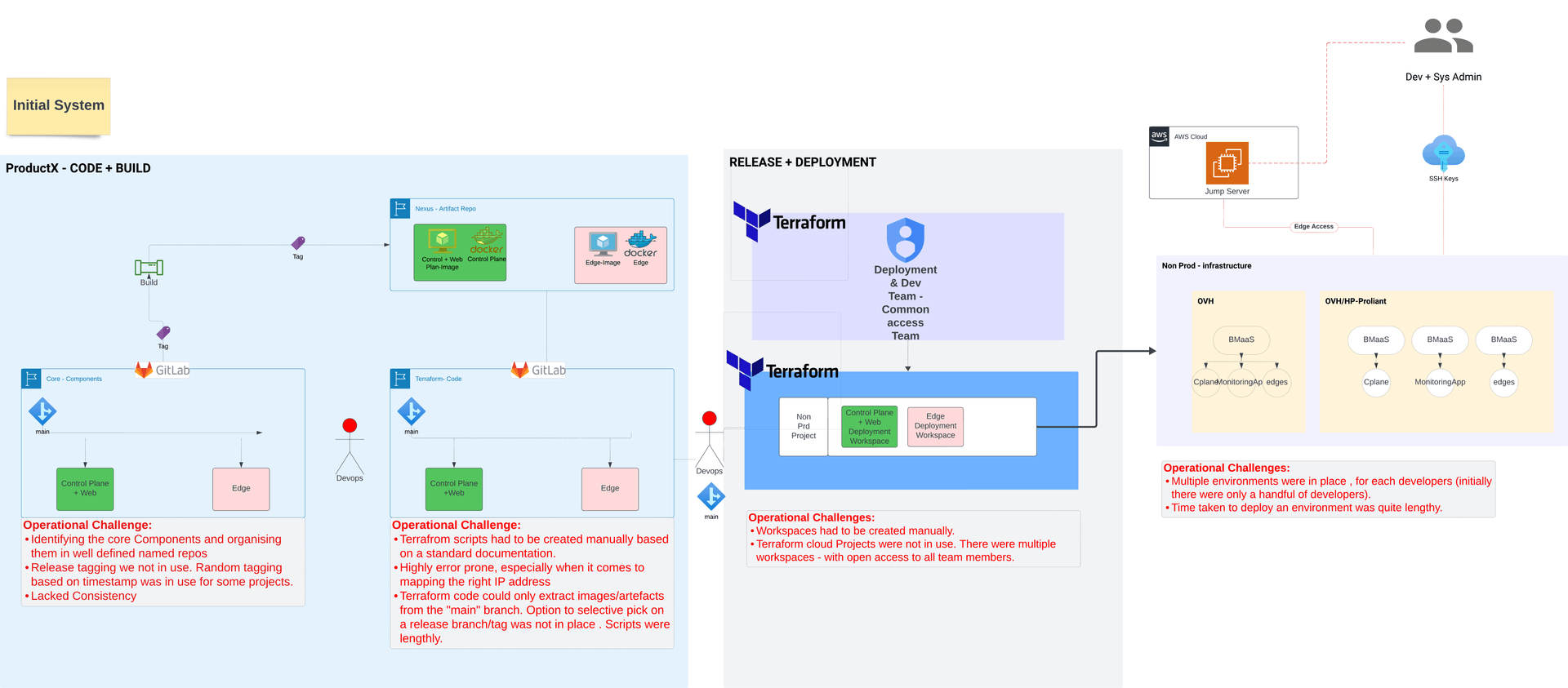

(Click image to zoom)

Initial Design
Initial Design Analysis
  • Manual deployment with no pipelines.
  • Release management challenges due to hardcoded references.
  • Unregulated access to environments.

Tactical Solution:

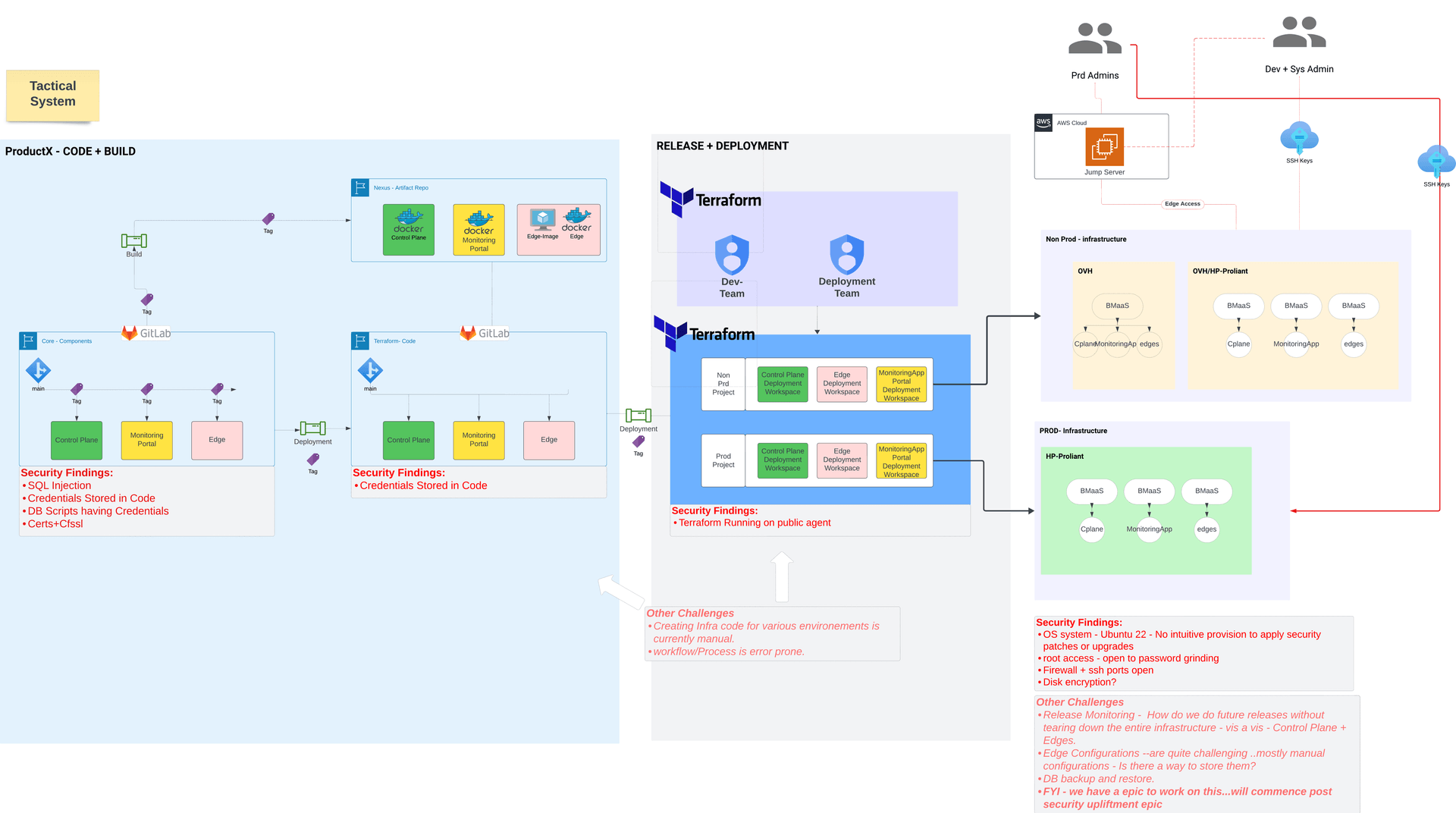

(Click image to zoom)

Tactical Solution
Tactical Solution Diagram
  • Refactor and enhance deployment scripts for multiple releases.
  • Introduce GitLab pipelines for component aggregation.
  • Create placeholders in pipelines for automation testing.

Security Scrutiny Phase:

Post the deployment of tactical solution , a security audit was conducted internally (and externally) to review the gaps . A bunch of gaps were identified (marked in red in the above diagram). This along with other operational gaps , paved way for the strategic solution.

Strategic Solution:

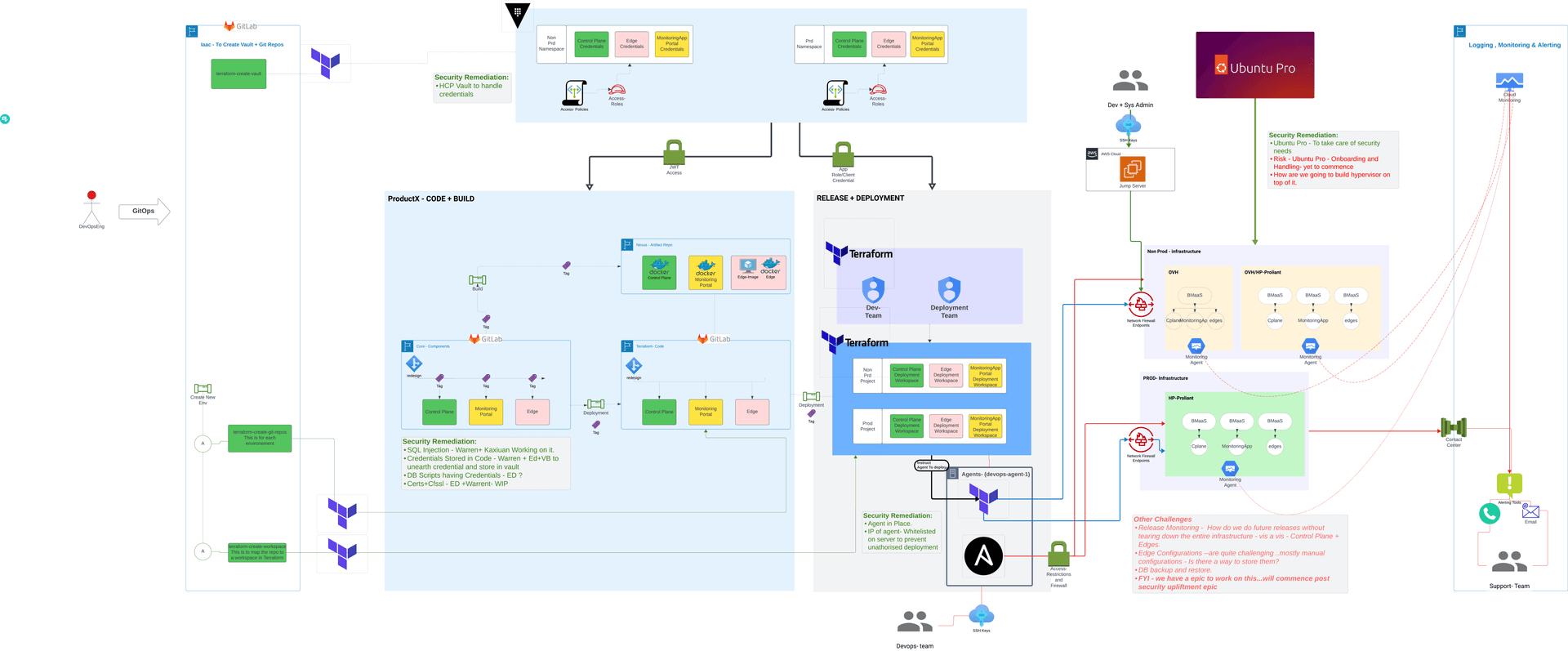

(Click image to zoom)

Strategic Solution
Strategic Solution Diagram

Automation Tools:

  • Automation UI – Playwright.
  • GitOps to drive configurations and infra settings through code.

Infrastructure Automation:

  • Terraform for creating Vault configurations.
  • Link GitLab project and code with Terraform-Cloud.
  • Automate user configurations and firewall restrictions using Ansible Tower.

Security Measures:

  • OS security and monitoring with Ubuntu Pro.
  • HashiCorp Vault for secure credential storage.

In Conclusion:

This journey from a knowledge void to a well-orchestrated DevOps strategy showcases the importance of adaptability and strategic thinking in the fast-paced tech landscape. As we breathe new life into the product and its delivery mode,the focus is not just on ease of deployment but on crafting a robust, secure, and scalable product ready for the demands of the market.
