GitOps -Terraform-Vault-Serverless

This article demonstrates using Git as the single source of truth to build an Infrastructure in aws using some of the best practices available.

Requirement at a Glance:

  • Highly available web app , using the servless offering of aws
  • Secure access of Credentials to build Infrastructure.
  • Use terraform - with remote state management.
  • Web App should reside in a Private Space
  • Infra should be scalable to support multiple environments.
  • Use conventional commits.

Solution Offering:

  • Highly available web app , using the servless offering of aws : Use AWS lambda
  • Secure access of Credentials to build Infrastructure: Use Hashicorp Vault to render dynamic aws credentials
  • Use terraform - with remote state management : Use S3 to store state files.
  • Web App should reside in a Private Space : Mount AWS lambda in a Private Subnet
  • Infra should be scalable to support multiple environments: Expose variables that can create different environements , Use terraform modules for scaling components as well as for ease of readability
  • Use conventional commits - Commits were used with the following prefix "feat , fit". This can be used to generate changelog. (TODO)

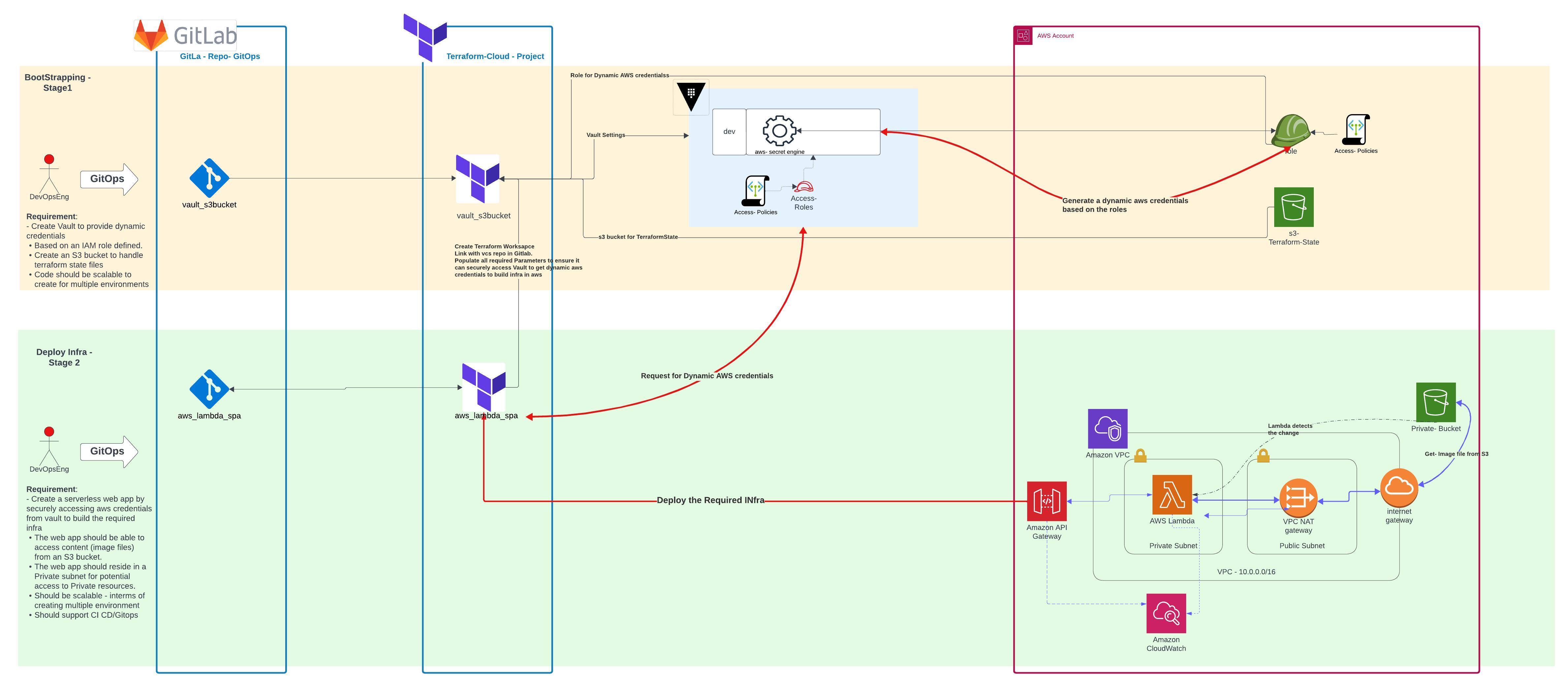

High Level Overview

(Click image to zoom)

High Level Overview of S3 AWS Vault Terraform Architecture

Bootstrapping

Repo link : https://gitlab.com/vineethbhargavan/terraform_vault_aws/vault_s3bucket.git

Implementation Notes:
  • Create Vault Namespace for a fixed environment (say "dev")
  • The Namespace will have an aws secret engine which will associate with aws to provide dynamic credentials upon invoked.
  • The Namespace will have polices and roles - which will make use of the auth type ,JWT to authenticate with Terraform cloud to provide dynamic aws credentials for terraform to build infrastructure in aws.
  • Create AWS role and Policy - this will be used to map the access rights for the dynamic credentials generated by Vault during runtime (i.e when workspaces invoke vault)
  • Create an S3 bucket to handle terraform state file.
  • Create a Terraform workspace with the required set of variables - to faciliate aws dynamic credential generation upon integrating with vault. The creation of terraform workspace is handled by the terraform code.
  • All code block will have an variable named "environment" - which helps us to scale the entire infra (including vault namespace) for multiple environments.

Deploying WebApp

Repo link : https://gitlab.com/vineethbhargavan/terraform_vault_aws/aws_lambda_spa.git

Implementation Notes:
  • All code block will have an variable named "environment" - which helps us to scale the entire infra for multiple environments.
  • Loadbalancing and selfhealing are provided by virtue of having API Gateway and Lambda.
  • Lambda is mounted in a VPC - Private Subnet.
  • A private S3 bucket is used to zip the artifact of lambda function
  • The same s3 bucket is used to store an Image file which will be used to render an Image in the HTML content.

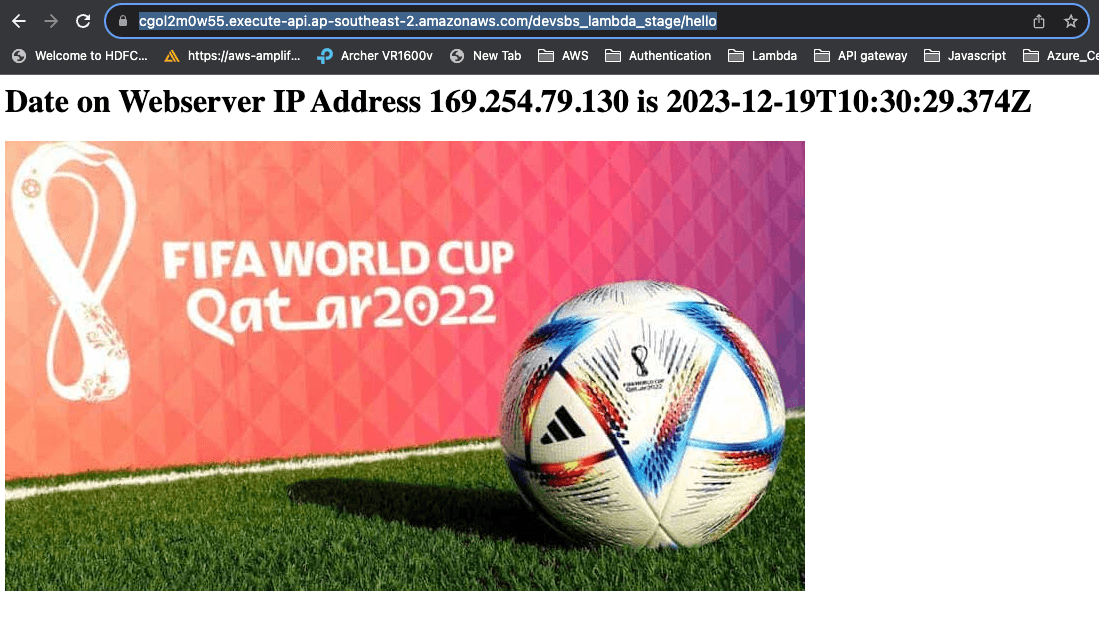

Solution at a glance

URL : https://cgol2m0w55.execute-api.ap-southeast-2.amazonaws.com/devsbs_lambda_stage/hello

Solution Overview
  • "169.254.79.130" is part of the link-local address range. Specifically, it is within the Automatic Private IP Addressing (APIPA) range, which is reserved for self-assigned IP addresses when a device cannot obtain an IP address from a DHCP server. Need further exploring to figure out if an IP within the CIDR range of VPC can be derived from a lambda function.

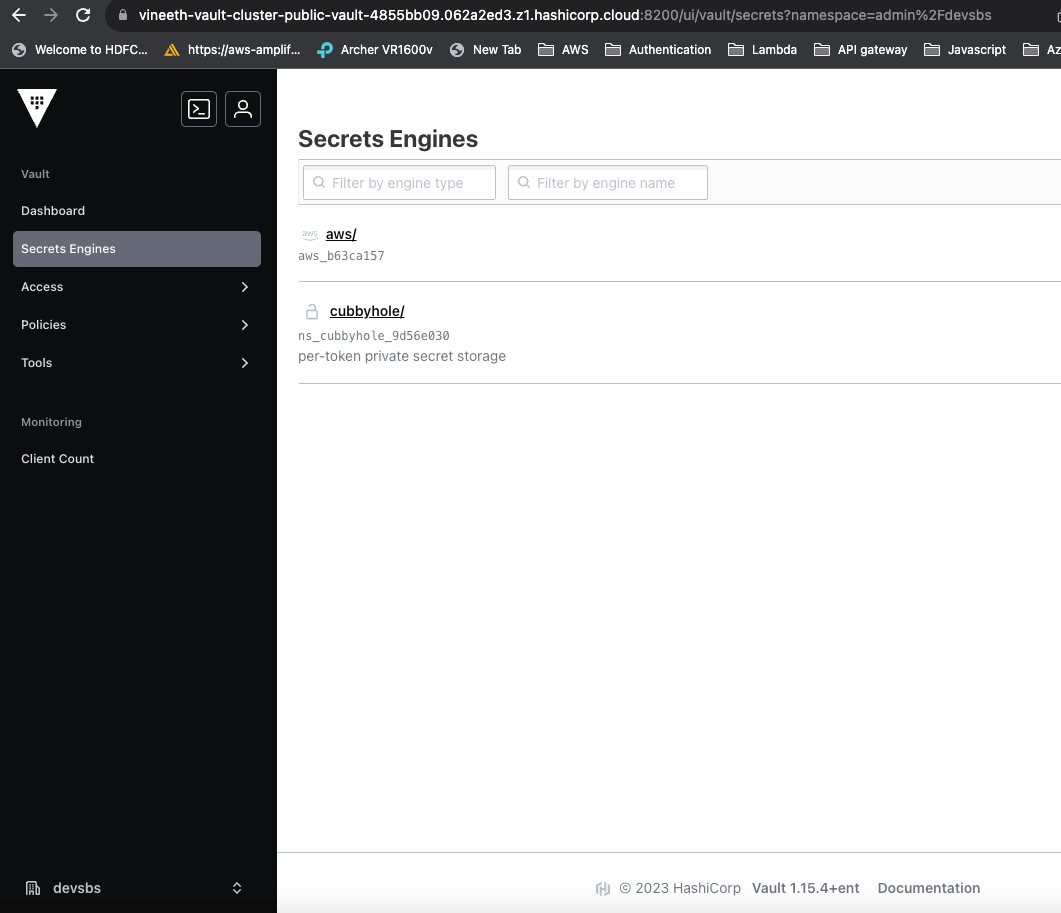

Vault at a glance

Vault Overview

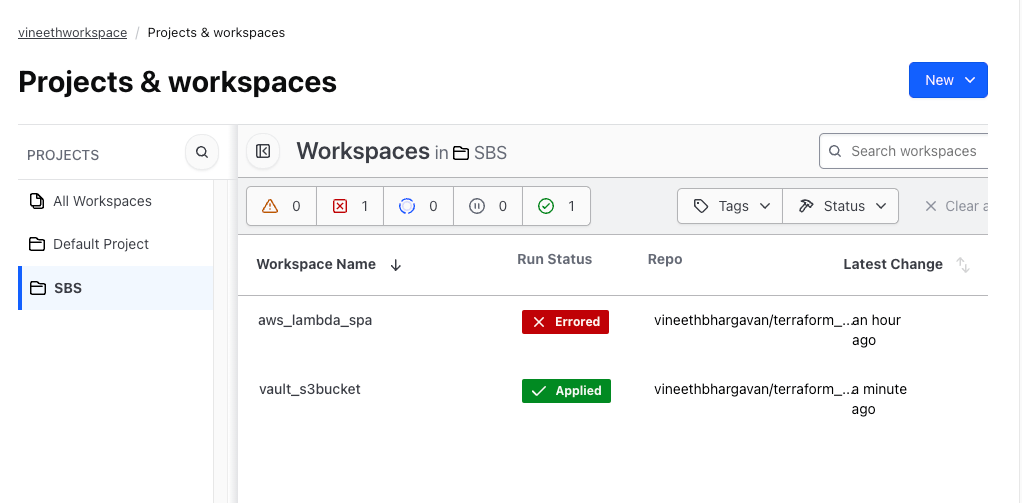

Terraform Project Overview

Terraform Project Overview

Reference

  • https://developer.hashicorp.com/terraform/tutorials/cloud/vault-backed-dynamic-credentials
